Home / Retractable Roof

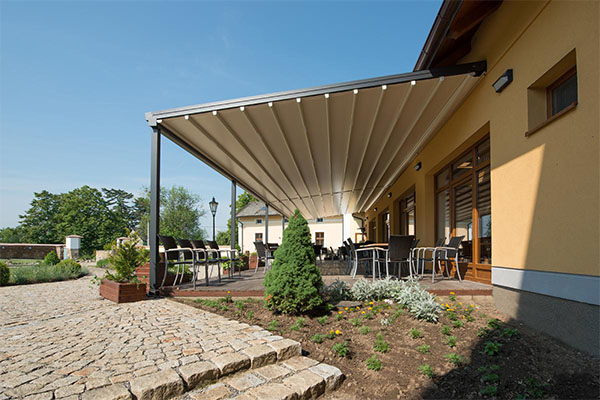

The Retractable Roof system is a versatile solution for expanding usable outdoor space, particularly across larger areas. The fabric operates smoothly along integrated aluminium tracks, powered by a dedicated motor system for controlled opening and closing.
When open, it allows natural light and airflow to enter, creating a comfortable outdoor environment. When closed, the tensioned fabric provides reliable weather protection, offering effective shade and rain coverage while maintaining a clean architectural appearance.

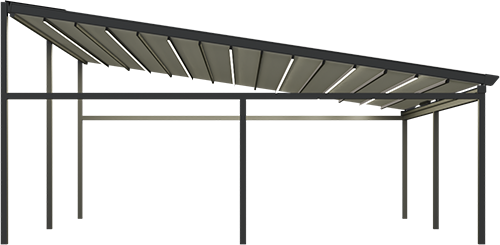

Retractable Roof T700
Max size: 10m width x 7.5m extend
Color: Grey, White, Customized
Material: 6063-T5 Alumium Alloy
Fabric: PVC waterproof fabric

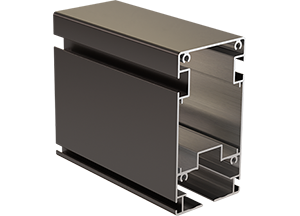

Name: Guide Rail
Material: 6063-T5 Alumium Alloy
Specification: 130 x 70 x 1.5 mm

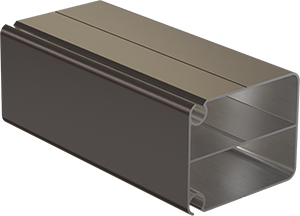

Name: Big Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 76 x 60 x 1.3 mm

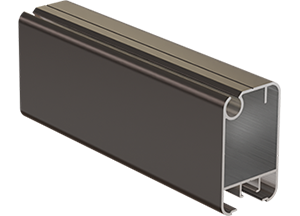

Name: Small Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 60 x 36 x 1.3 mm
Name: Gutter
Material: 6063-T5 Alumium Alloy
Specification: 150 x 143 x 1.8 mm
Name: Post
Material: 6063-T5 Alumium Alloy
Specification: 125 x 90 x 2 mm
Name: Water Baffle
Material: 6063-T5 Alumium Alloy
Specification: 110 x 13.8 x 0.5 mm

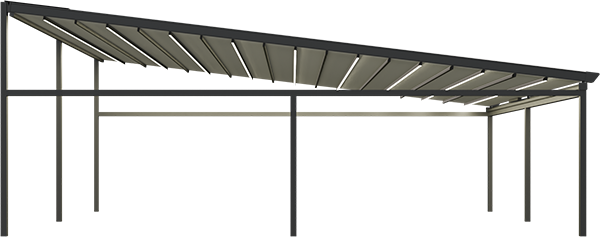

Retractable Roof T900
Max size: 10m width x 9.5m extend
Color: Grey, White, Customized
Material: 6063-T5 Alumium Alloy
Fabric: PVC waterproof fabric

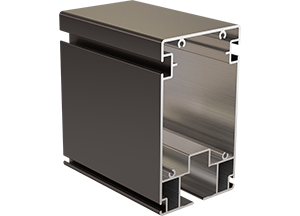

Name: Guide Rail
Material: 6063-T5 Alumium Alloy
Specification: 170 x 98 x 2.5 mm
Name: Big Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 76 x 60 x 1.3 mm

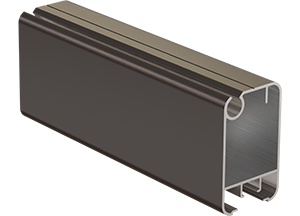

Name: Small Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 60 x 36 x 1.3 mm

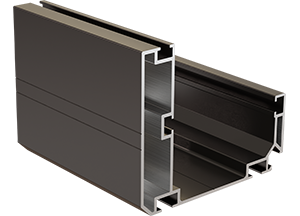

Name: Gutter
Material: 6063-T5 Alumium Alloy
Specification: 150 x 143 x 1.8 mm

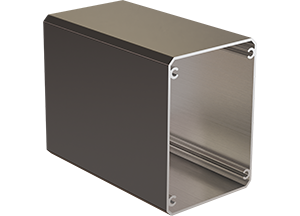

Name: Post
Material: 6063-T5 Alumium Alloy
Specification: 125 x 90 x 2 mm

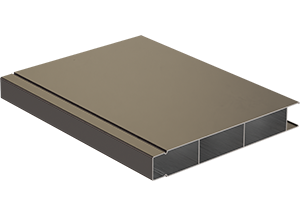

Name: Water Baffle
Material: 6063-T5 Alumium Alloy
Specification: 110 x 13.8 x 0.5 mm

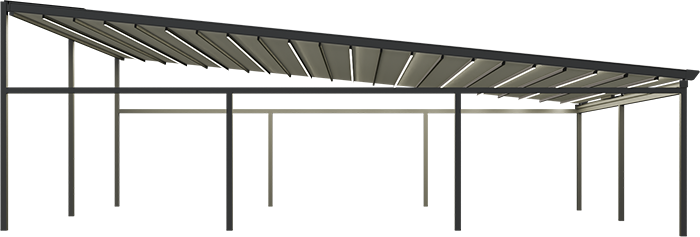

Retractable Roof T1200
Max size: 10m width x 7.5m extend
Color: Grey, White, Customized
Material: 6063-T5 Alumium Alloy
Fabric: PVC waterproof fabric

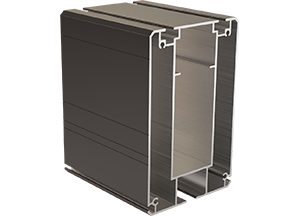

Name: Guide Rail
Material: 6063-T5 Alumium Alloy
Specification: 200 x 130 x 2.5 mm

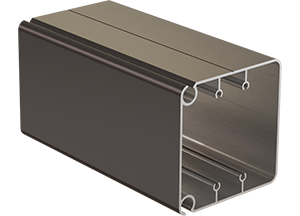

Name: Big Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 80 x 80 x 1.5 mm

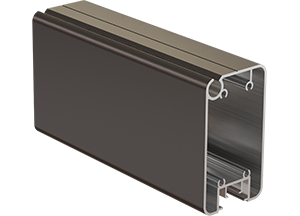

Name: Small Crossbar
Material: 6063-T5 Alumium Alloy
Specification: 80 x 45 x 1.5 mm

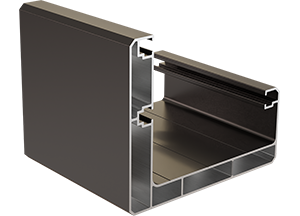

Name: Gutter
Material: 6063-T5 Alumium Alloy
Specification: 180 x 150 x 3 mm

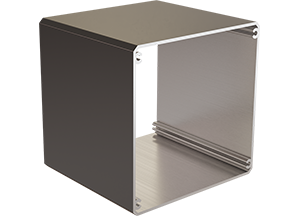

Name: Post
Material: 6063-T5 Alumium Alloy
Specification: 170 x 170 x 3 mm
Name: Water Baffle
Material: 6063-T5 Alumium Alloy
Specification: 110 x 13.8 x 0.5 mm
Specification
| Model | T700 | T900 | T1200 | |
|---|---|---|---|---|
| Regular Color | Grey, White, Customized | |||
| Material | Auminum Alloy | |||
| Size | Max width | 10m | 5m | |
| Max extend | 7.5m | 10m | 12m | |
| Surface | Powder coating / Anodic oxidation | |||
| Bar spacing | 500mm | |||
| Motor | 100V / 220V | |||
| LED light | 3000K / RBG / Customize | |||
| Waterproof | 100% Waterproof | |||
Advantage
PVC fabric is completely waterproof and corrosion-resistant

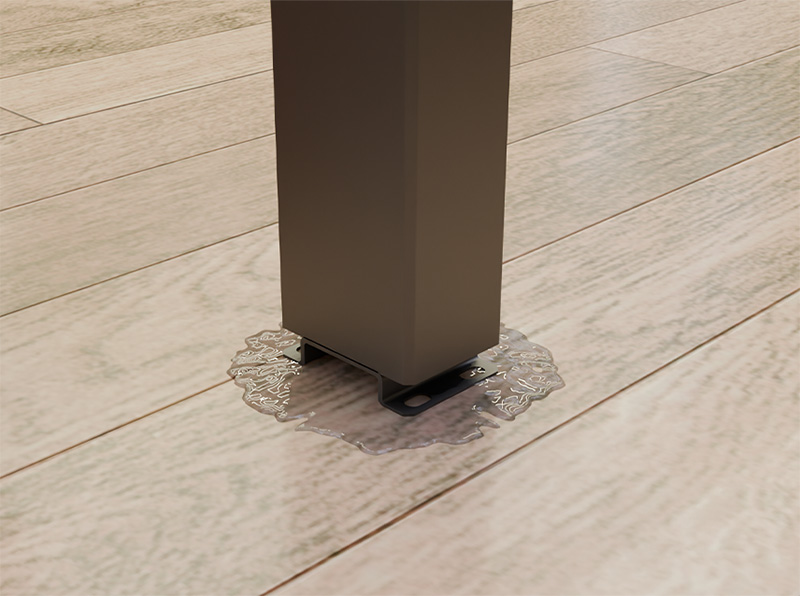

Drainage outlets at the base of hollow posts

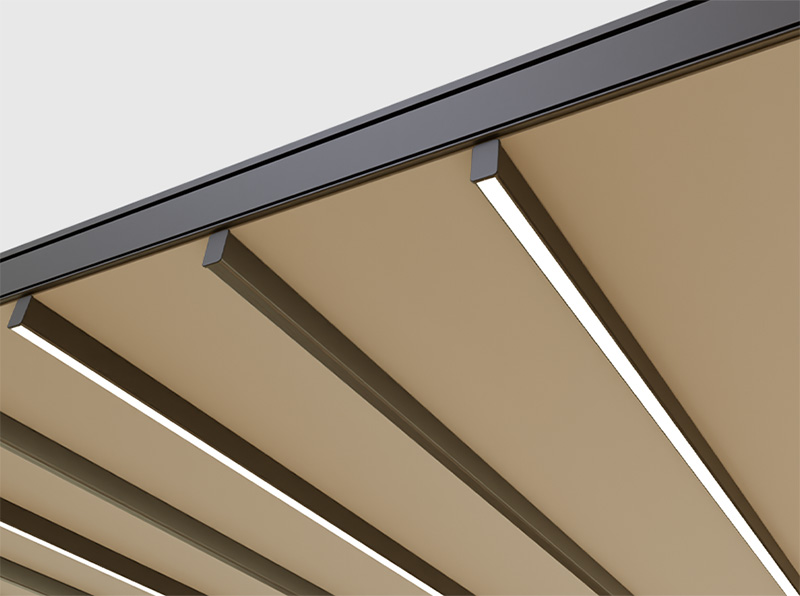

Integrated LED ambient lighting strips

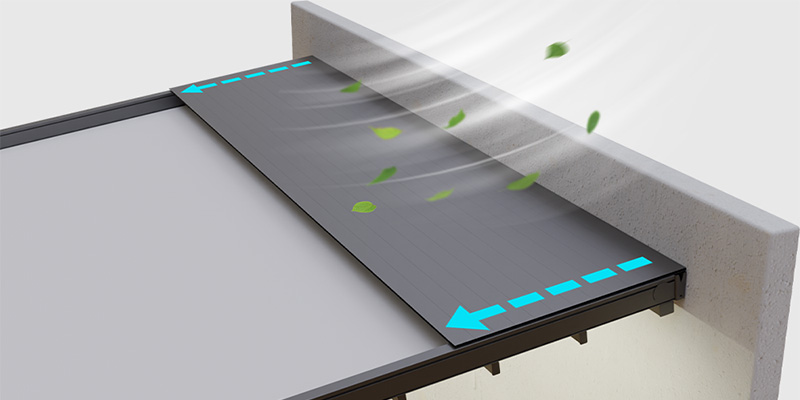

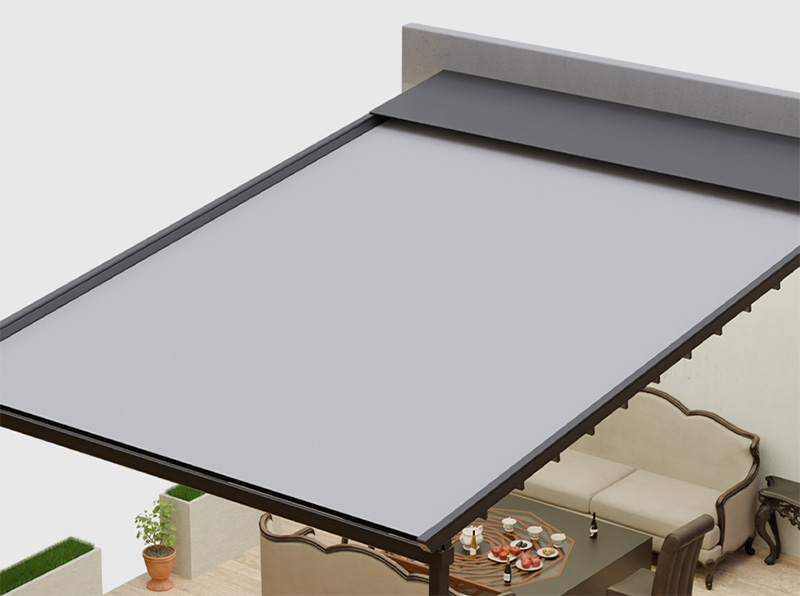

The water guard panel effectively blocks leaves and dust while preventing rainwater damage to the motor and shade fabric, providing reliable protection and maintaining a clean, aesthetically pleasing appearance.
The guide rails feature polyurethane automotive-grade rubber rain seals that are seamlessly integrated with the frame, directing rainwater into the gutter system.

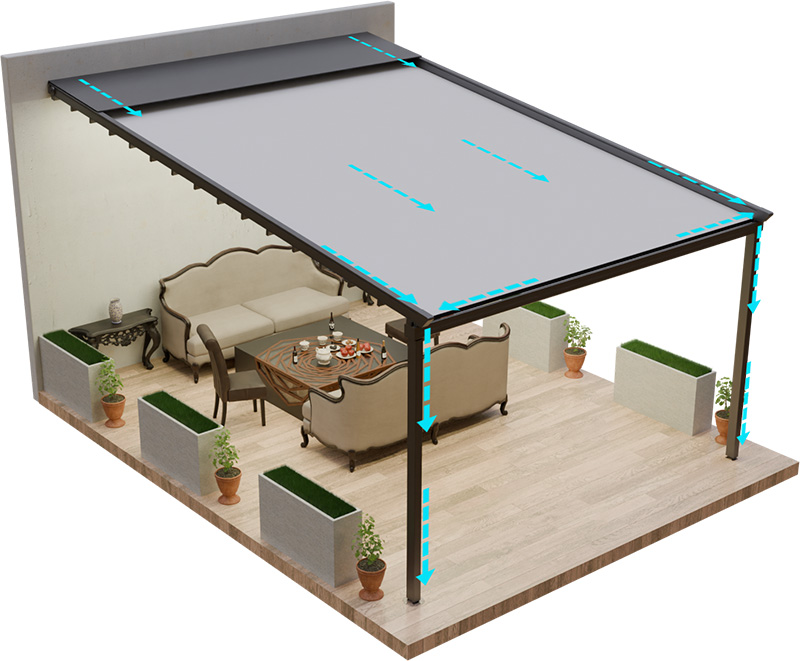

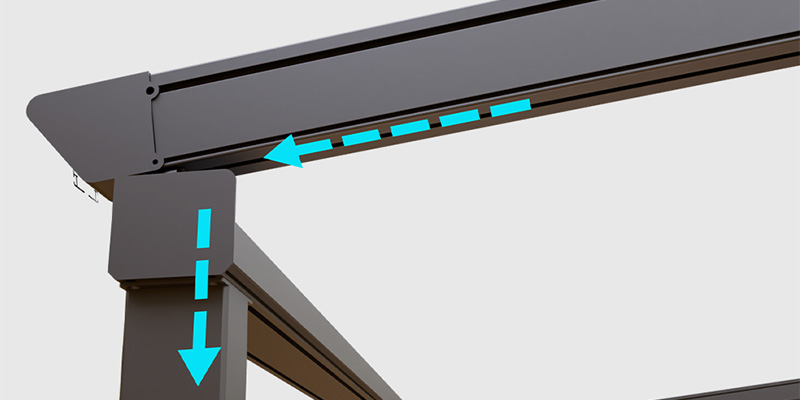

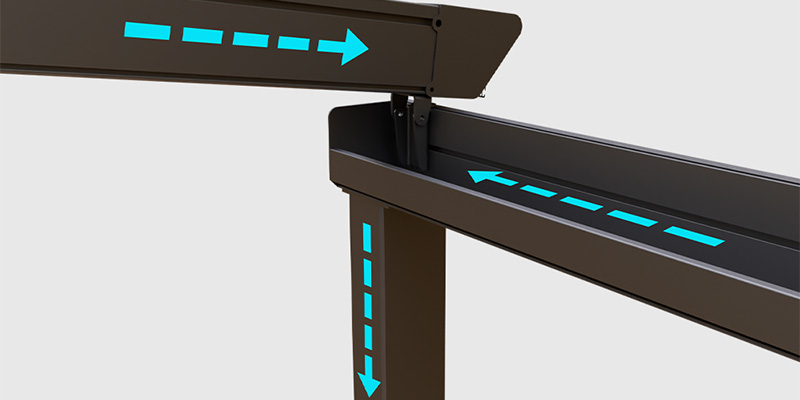

The corrosion-resistant 6063-T5 aluminum alloy guide rails channel water into the gutters, which then route the rainwater through hollow posts for effective perimeter drainage.

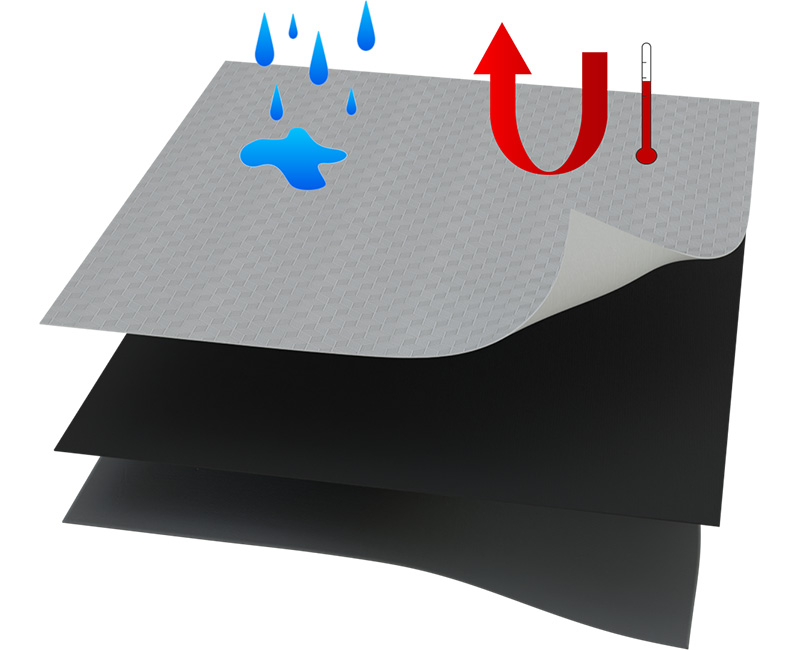

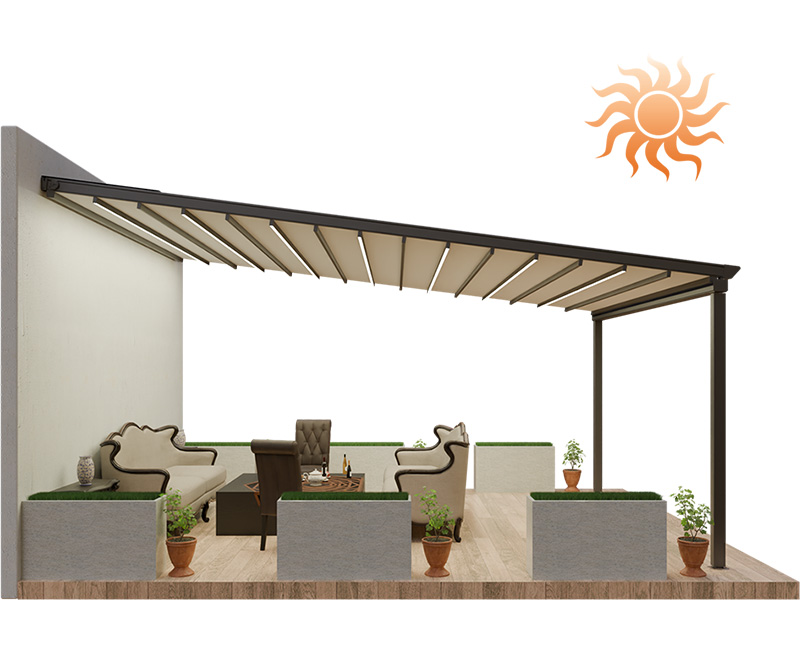

Premium Fabric
The retractable roof, a popular sunshade product in Europe, has been launched after meticulous design and repeated improvements, winning the favor of a wide range of users. The product is both practical and aesthetically pleasing, delivering excellent performance in sun protection, rain resistance, windproofing and UV resistance!
Fabric from China and Spain
800gr/<(PVC material)
Vibrant colors with excellent fade resistance, featuring strong waterproof and fireproof properties
More stain-resistant and easy to clean
Dual UV-treated surfaces with self-cleaning capability
UV-resistant additives enhance durability
Reinforced PVC double coating, tear-proof, mildew-resistant & fire-retardant
Light-blocking black middle layer
UV blocking
Rain resistance
Wind resistance
Temperature control
Ventilation

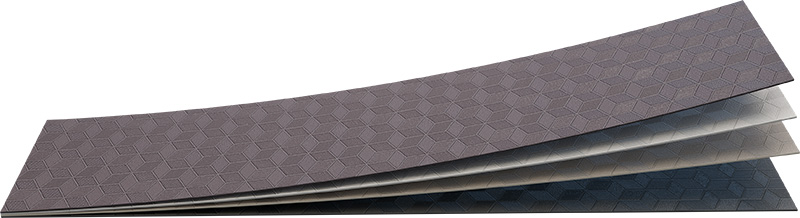

Fabric Specifications
Spanish SauIeda Fabric
| Fabric Material | AT1100dtex high-tenacity polyester |
| Tensile Strength | Warp: 270 daN/5cm |
| Weft: 230 daN/5cm | |
| Fabric Thickness | 0.64 mm |
| Temperature Resistance | -30°C to 70°C |
| Fire Rating | M2 |
| Fabric Weight | 830 g/m² |
Brown
White

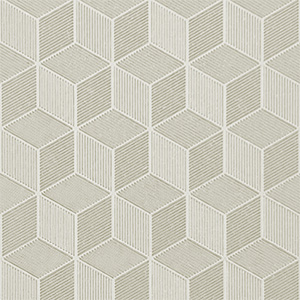

Beige

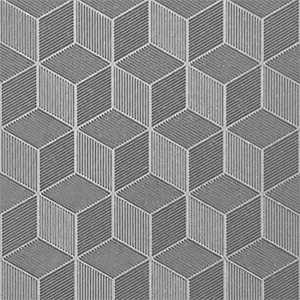

Grey
Premium China Fabric
| Fabric Material | PVC + Polyester |
| Tensile Strength | Warp: 3210 N |
| Weft: 2887 N | |
| Fabric Thickness | 0.68 mm |
| Color Fastness | UV Resistance |
| Fire Rating | GB/T 5455-2014 Standard |
| Fabric Weight | 835 g/m² |
Brown
White
Beige
Grey
Installation Types
Wall-mounted
Wall-mounted (combined)
Free-standing
Free-standing (combined)
Double-sided

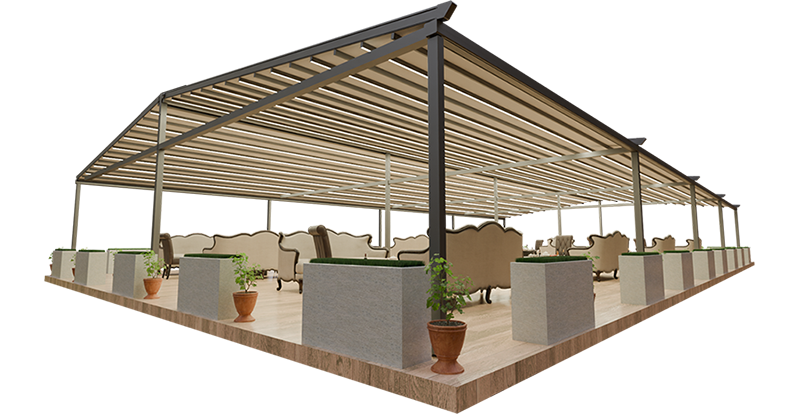

Double-sided (combined)

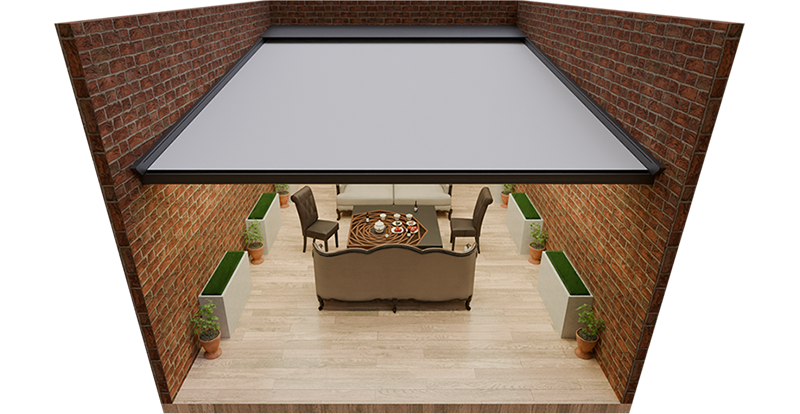

Wall-clamped

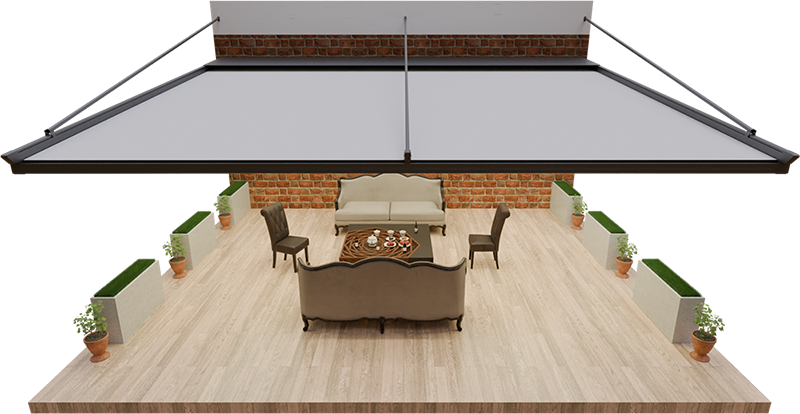

Inclined rod-supported
Motor Introduction
Dooya Motor Introduction
Leading Smart Home and Motor Solutions Provider - Dooya was established in the early 2000s, headquartered in Ningbo, China, with a presence in over 60 countries and regions worldwide. Its products are widely used in more than 100 countries and regions. Dooya has established R&D centers in China, Europe, and the United States, and holds over 130 patents to date.
For over two decades, Dooya has been dedicated to collaborating with global partners, including smart home integrators, architects, and designers. Through innovative products such as smart motors, automated window systems, and intelligent shading solutions, Dooya strives to enhance energy efficiency, improve living comfort, and create smarter, more sustainable living spaces for users worldwide.
Get a Free Quote

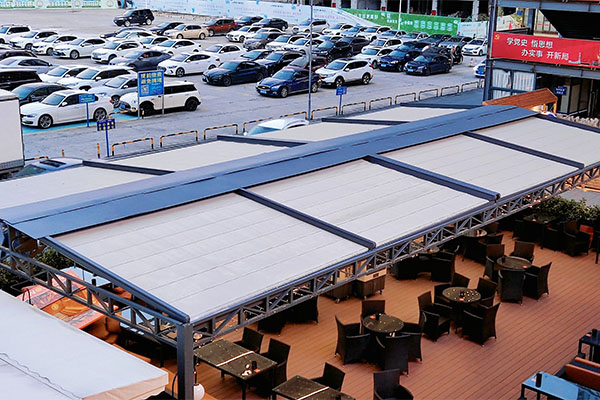

More Cases
